Control of brush motors, series motors for the electric four-wheel vehicles, golf carts, recreational vehicles, tour buses, tourist car

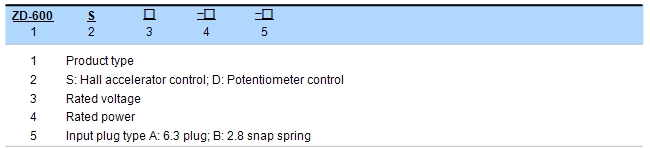

SAYOON MODEL IMPLICATION:
USES:
Control of brush motors, series motors for the electric four-wheel vehicles, golf carts, recreational vehicles, tour buses, tourist car
TECHNICAL PARAMETERS: (Version 1.39)
SAYOON Product Type | ZD-600S |
| Rated power | 2200W;3000W |
| Rated voltage | 12V;24V-36V;48V-60V;72V;84V;96V |
| Rated current(A) | 80A;100A |
| Throttle signal types | 0.8-4.2V; 0-5k |
| Effective control of voltage range | 1.8-3.5V |
| Rated power loss | ≤5W |
| Throttle interface type | Three-wire 6.3 insert(default) |
| Testing organization certification | CE,FCC |
INSTALLATION DIAGRAM:

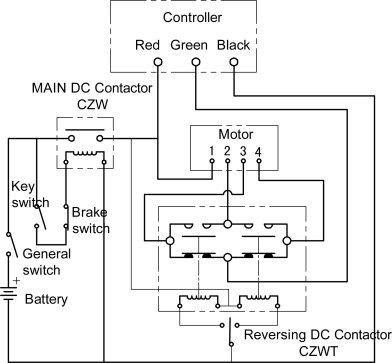

WIRING DIAGRAM:
PLUG TYPE:
 |  |
MECHANICAL ABILITY and USE of the ENVIRONMENT:
| Ambient temperature | -30~+85℃ |
| Relative humidity | +20℃ 98% |
| the vibration frequency of the fixed | 3G, 1 ~ 50Hz 0.5mm amplitude |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP55 |
ORDER INSTRUCTION:
SAYOON Product Type | ZD-600S |
| U.N.W. | 1016g |
certification：
PRODUCT PICTURE:
DOWNLOAD DATA:
Tips: if you want to understand the technical details of parameters more SAYOON ZD-600S Brush DC Motor Controller, other SAYOON or the product of information, please visit SAYOON electric official website www.makejoy.com.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD. will welcome your arrival.
